Technical parameter：

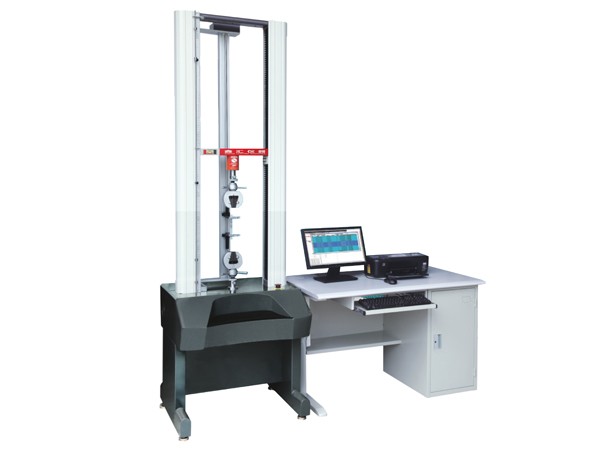

Model | XH-3236 |
Capacity(optiona | 100, 200, 500N; 1, 2, 5 kN |
Unit(switchable) | kgf,lbf,N,kN,kPa,MPa |
Induction mode | LOAD CELL |
Display mode | computer system |
Resolution | 1/300,000 |
Software | Special program for tensile machine |
Max.Stroke（excluding the grips) | 1200 mm |
Effective width | 360 mm |
Stroke resolution | 0.0004 mm |
Test speed | 0.01~1000 mm/min |
Dimension(WxDxH) | 660X650X2100 mm |
Weight(approx.) | 156 kg |
Power | 1∮, AC 220V, 50Hz Or designated by country |
If there is any change in product specifications, we will not inform you otherwise. Please take the actual quotation as the criterion！
